MB156CS01-9 | 15.6" Full HD IPS Slim Laptop Screen(104)
Vendor:
SKYROCK1
Availability:
In stock
35.000 JD
Couldn't load pickup availability
MB156CS01-9 | 15.6" Full HD IPS Slim Laptop Screen(104)
35.000 JD

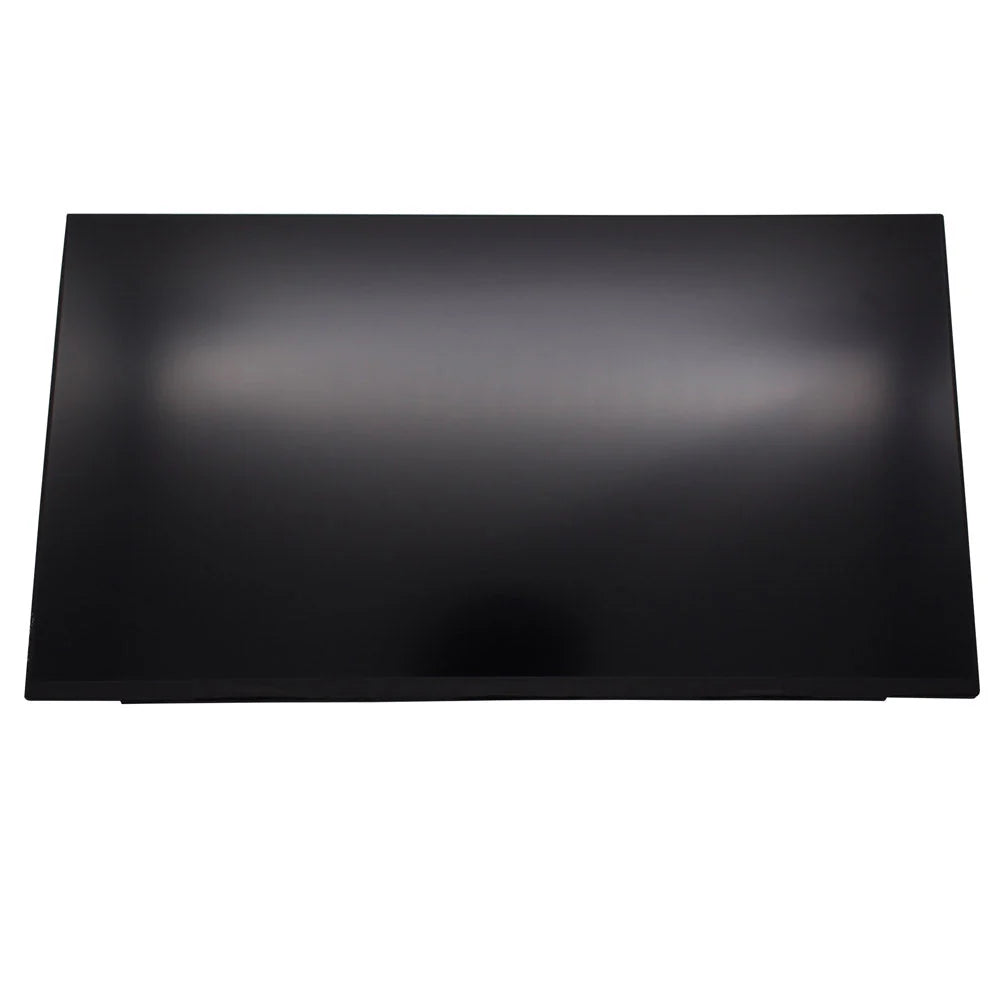

MB156CS01-9 | 15.6" Full HD IPS Slim Laptop Screen
Experience superior clarity and vivid colors with this premium IPS display upgrade.
The MB156CS01-9 (by BOE) is a high-performance Full HD panel designed for modern 15.6-inch laptops. Featuring IPS (In-Plane Switching) technology, it offers wide viewing angles and exceptional color accuracy, making it perfect for creative work, entertainment, and professional use.
🛠️ Technical Specifications
- Model: MB156CS01-9 (BOE).
- Screen Size: 15.6-inch Diagonal.
- Resolution: Full HD (1920 x 1080).
- Panel Type: IPS (Wide Viewing Angles & Rich Colors).

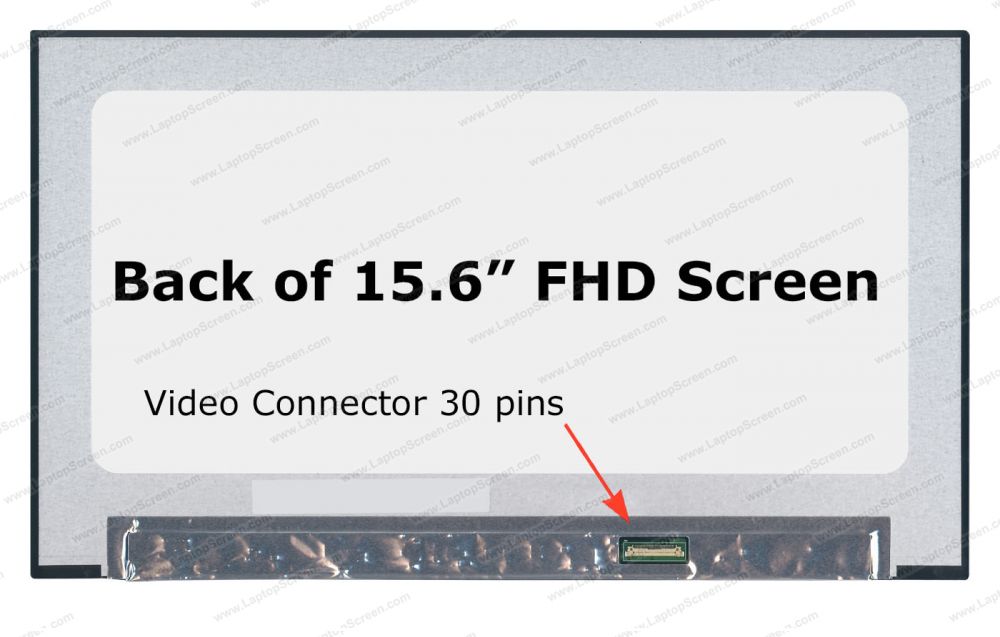

- Connector: 30-Pin eDP (Bottom Right).
- Design: Slim Form Factor (No Brackets / Narrow Bezel fit).
- Backlight: LED.
✅ Compatibility Guide
This display is a high-quality replacement for many 15.6" modern laptops using 30-pin eDP, including:
- HP: Pavilion 15, 15-dw, 15-dy, and 15-ef series.
- Lenovo: Ideapad 3, Ideapad 5, and V15 series.
- Dell: Inspiron 15 3000 & 5000 series.
- Interchangeable Models: NV156FHM-N48, LP156WF9-SPK1, B156HAN02.1.
💡 Expert Installation Tips
- Safety First: Power off the laptop and disconnect the battery before installation. Failing to do so can blow the backlight fuse on the motherboard.
- Resolution Match: Confirm your original screen was 1080p (Full HD) to ensure compatibility with your current video cable.
- Mounting: This is a bracketless Slim design. Use specialized double-sided adhesive strips if required by your laptop's bezel.
Premium Quality Guaranteed
✨ Grade A+ IPS Panel | 📦 Triple-Layer Impact Protection | 🚚 Fast Global Shipping
Upgrade to Full HD IPS today and see the difference!
